제목

인프런 스프링 시큐리티 강의 학습-15

   2022년10월10일     21분읽었습니다.

Ajax Custom DSLs 구현하기, Ajax 로그인 구현 & CSRF 설정를 정리한 포스트입니다.

출처는 인프런의 스프링 시큐리티 - Spring Boot 기반으로 개발하는 Spring Security강의를 바탕으로 이 포스트를 작성하고 있습니다.
강의의 세션 4의 6,7번 강의내용에 대한 정리입니다.

Ajax Custom DSLs 구현하기

Custom DSLs를 구현하기 위해서 1개의 클래스와 1개의 메서드를 사용합니다.

  1. AbstractHttpConfigurer은 스프링 시큐리티 초기화 설정 클래스로써 필터, 핸들러, 메서드, 속성 등을 한 곳에 정의해 처리할 수 있도록 합니다.
  2. HttpSecurity의 apply(C configurer) 메서드를 사용해 구현한 구현체를 설정해 DSLs를 작동시킵니다.

실제 코드

AjaxLoginConfigurer.java

public final class AjaxLoginConfigurer<H extends HttpSecurityBuilder<H>> extends AbstractAuthenticationFilterConfigurer<H, AjaxLoginConfigurer<H>, AjaxLoginProcessingFilter> {
    private AuthenticationSuccessHandler successHandler;
    private AuthenticationFailureHandler failureHandler;
    private AuthenticationManager authenticationManager;

    public AjaxLoginConfigurer() {
        super(new AjaxLoginProcessingFilter(), null);
    }

    @Override
    public void init(H http) throws Exception {
        super.init(http);
    }

    @Override
    public void configure(H http) {
        if (authenticationManager == null) {
            authenticationManager = http.getSharedObject(AuthenticationManager.class);
        }

        getAuthenticationFilter().setAuthenticationManager(authenticationManager);  // 1
        getAuthenticationFilter().setAuthenticationSuccessHandler(successHandler);  // 1
        getAuthenticationFilter().setAuthenticationFailureHandler(failureHandler);  // 1

        SessionAuthenticationStrategy sessionAuthenticationStrategy = http.getSharedObject(SessionAuthenticationStrategy.class);

        if (sessionAuthenticationStrategy != null) {
            getAuthenticationFilter().setSessionAuthenticationStrategy(sessionAuthenticationStrategy);
        }
        RememberMeServices rememberMeServices = http.getSharedObject(RememberMeServices.class);

        if (rememberMeServices != null) {
            getAuthenticationFilter().setRememberMeServices(rememberMeServices);
        }

        http.setSharedObject(AjaxLoginProcessingFilter.class, getAuthenticationFilter());
        http.addFilterBefore(getAuthenticationFilter(), UsernamePasswordAuthenticationFilter.class);
    }
    public AjaxLoginConfigurer<H> successHandlerAjax(AuthenticationSuccessHandler successHandler) {
        this.successHandler = successHandler;
        return this;
    }
    public AjaxLoginConfigurer<H> failureHandlerAjax(AuthenticationFailureHandler authenticationFailureHandler) {
        this.failureHandler = authenticationFailureHandler;
        return this;
    }
    public AjaxLoginConfigurer<H> setAuthenticationManager(AuthenticationManager authenticationManager) {
        this.authenticationManager = authenticationManager;
        return this;
    }

    @Override
    protected RequestMatcher createLoginProcessingUrlMatcher(String loginProcessingUrl) {
        return new AntPathRequestMatcher(loginProcessingUrl, "POST");
    }
}

상속받은 AbstractAuthenticationFilterConfigurer 클래스의 코드를 가져와 적절하게 변경하였습니다.

  1. 원래는 AjaxSecurityConfig에서 ajaxLoginProcessingFilter 메서드로 설정했지만 getAuthenticationFilter를 통해 메니저와 핸들러를 Filter에 저장하고 있습니다.

AjaxSecurityConfig.java

@Bean
public SecurityFilterChain FilterChain(HttpSecurity http) throws Exception {
    http
            .antMatcher("/api/**")
            .authorizeRequests()
            .antMatchers("/api/message").hasRole("MANAGER")
            .anyRequest().authenticated();

    http
            .exceptionHandling()
            .authenticationEntryPoint(new AjaxLoginAuthenticationEntryPoint())
            .accessDeniedHandler(ajaxAccessDeniedHandler());

    http.csrf().disable();

    customConfigurerAjax(http);     // 1

    return http.build();
}

public void customConfigurerAjax(HttpSecurity http) throws Exception {
    http                            // 2
            .apply(new AjaxLoginConfigurer<>())
            .successHandlerAjax(ajaxAuthenticationSuccessHandler())
            .failureHandlerAjax(ajaxAuthenticationFailureHandler())
            .setAuthenticationManager(authenticationManager(authenticationConfiguration))
            .loginProcessingUrl("/api/login");
}

//    @Bean
//    public AjaxLoginProcessingFilter ajaxLoginProcessingFilter() throws Exception {
//        AjaxLoginProcessingFilter ajaxLoginProcessingFilter = new AjaxLoginProcessingFilter();
//        ajaxLoginProcessingFilter.setAuthenticationManager(authenticationManager(authenticationConfiguration));
//        ajaxLoginProcessingFilter.setAuthenticationSuccessHandler(ajaxAuthenticationSuccessHandler());
//        ajaxLoginProcessingFilter.setAuthenticationFailureHandler(ajaxAuthenticationFailureHandler());
//        return ajaxLoginProcessingFilter;
//    }
  1. Custom DSLs를 사용하기 위한 메서드를 호출합니다.
  2. AjaxLoginConfigurer를 불러오고, success, failure, Manager를 설정합니다.

실제 실행 화면

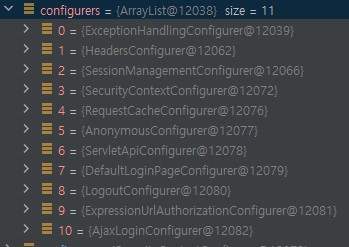

configurers에 저장된 AjaxLogin 정상적으로 리스트에 들어가 있는 모습 위에서 제작한 AjaxLoginConfigurer가 정상적으로 configurers에 등록이 되었습니다.

configure의 실행 정상적으로 만든 메서드가 실행됨 이 사진은 AjaxLoginConfigurer의 configure 메서드가 정상적으로 실행되 Filter 저장까지 진행된 것을 확인할 수 있습니다.
이후에 ajax.http를 실행한 결과 다 정상적으로 실행이 되는 것을 확인할 수 있었습니다.
해당 코드는 깃허브에 올려놨습니다.

Ajax 로그인 구현 & CSRF 설정

위 구현을 위해서 전송 방식이 Ajax인지 여부를 확인하기 위한 헤더를 설정하고, CSRF 헤더를 설정해야 합니다.

login.html

<!DOCTYPE html>
<html xmlns:th="http://www.thymeleaf.org">

<meta name="_csrf" th:content="${_csrf?.token}" th:if="${_csrf} ne null">               <!-- 1 -->
<meta name="_csrf_header" th:content="${_csrf?.headerName}" th:if="${_csrf} ne null">   <!-- 1 -->

<head th:replace="layout/header::userHead"></head>
<script>
  function formLogin(e) {

    let username = $("input[name='username']").val().trim();
    let password = $("input[name='password']").val().trim();
    let data = {"username" : username, "password" : password};

    let csrfHeader = $('meta[name="_csrf_header"]').attr('content') // 2
    let csrfToken = $('meta[name="_csrf"]').attr('content')         // 2

    $.ajax({
      type: "post",
      url: "/api/login",
      data: JSON.stringify(data),
      dataType: "json",
      beforeSend : function(xhr){
        xhr.setRequestHeader(csrfHeader, csrfToken);
        xhr.setRequestHeader("X-Requested-With", "XMLHttpRequest");
        xhr.setRequestHeader("Content-type","application/json");
      },
      success: function (data) {
        console.log(data);
        window.location = '/';

      },
      error : function(xhr, status, error) {
        console.log(error);
        window.location = '/login?error=true&exception=' + xhr.responseText;
      }
    });
  }
</script>
<body>
<div th:replace="layout/top::header"></div>
<div class="container text-center">
  <div class="login-form d-flex justify-content-center">
    <div class="col-sm-5" style="margin-top: 30px;">
      <div class="panel">
        <p>아이디와 비밀번호를 입력해주세요</p>
      </div>
      <div th:if="${param.error}" class="form-group">
        <span th:text="${exception}" class="alert alert-danger">잘못된 아이디나 암호입니다</span>
      </div>
      <form th:action="@{/login_proc}" class="form-signin" method="post">
        <input type="hidden" th:value="secret" name="secret_key" />
        <div class="form-group">
          <input type="text" class="form-control" name="username" placeholder="아이디" required="required" autofocus="autofocus">
        </div>
        <div class="form-group">
          <input type="password" class="form-control" name="password" placeholder="비밀번호" required="required">
        </div>
        <button type="button" onclick="formLogin()" id="formbtn" class="btn btn-lg btn-primary btn-block">로그인</button>
        <!--<button type="submit" class="btn btn-lg btn-primary btn-block">로그인</button>-->
      </form>
    </div>
  </div>
</div>
</body>
</html>
  1. 전송 방식이 Ajax인지 여부를 확인하기 위한 헤더를 설정합니다.
  2. CSRF 헤더를 설정합니다.

login.html

<!DOCTYPE html>
<html lang="ko" xmlns:th="http://www.thymeleaf.org">
<head th:replace="layout/header::userHead"></head>
<html xmlns:th="http://www.thymeleaf.org">

<meta name="_csrf" th:content="${_csrf?.token}" th:if="${_csrf} ne null">
<meta name="_csrf_header" th:content="${_csrf?.headerName}" th:if="${_csrf} ne null">

<head th:replace="layout/header::userHead"></head>
<script>
    function messages() {

        let csrfHeader = $('meta[name="_csrf_header"]').attr('content')
        let csrfToken = $('meta[name="_csrf"]').attr('content')

        $.ajax({
            type: "post",
            url: "/api/messages",
            //dataType: "json",
            beforeSend : function(xhr){
                xhr.setRequestHeader(csrfHeader, csrfToken);
                xhr.setRequestHeader("X-Requested-With", "XMLHttpRequest");
                xhr.setRequestHeader("Content-type","application/json");
            },
            success: function (data) {
                console.log(data);
                window.location = '/messages';
            },
            error : function(xhr, status, error) {
                console.log(error);
                if(xhr.responseJSON.status === '401'){
                    window.location = '/api/login?error=true&exception=' + xhr.responseJSON.message;
                }else if(xhr.responseJSON.status === '403'){
                    window.location = '/api/denied?exception=' + xhr.responseJSON.message;
                }
            }
        });
    }
</script>

<a href="#" onclick="messages()" style="margin:5px;" class="nav-link text-primary">메시지</a>

LoginController.java

@Controller
public class LoginController {
    @GetMapping(value = {"/login", "/api/login"})   // 1
    public String login(@RequestParam(value = "error", required = false) String error,
                        @RequestParam(value = "exception", required = false) String exception,
                        Model model) {
        // 코드는 이전과 동일
    }

    @GetMapping(value={"/denied","/api/denied"})    // 1
    public String accessDenied(@RequestParam(value = "exception", required = false) String exception, Principal principal, Model model) throws Exception {
        // 코드는 이전과 동일
    }
}
  1. 각 매핑 값들에 api 값들 또한 넣어 정상적으로 url이 동작하도록 설정했습니다.

AjaxLoginAuthenticationEntryPoint.java

public class AjaxLoginAuthenticationEntryPoint implements AuthenticationEntryPoint {
    @Override
    public void commence(HttpServletRequest request, HttpServletResponse response, AuthenticationException authException) throws IOException {
        response.sendError(HttpServletResponse.SC_UNAUTHORIZED, "UnAuthorized");
    }
}

출처

  1. 학습중인 강의
  2. Spring Security 공식 문서
